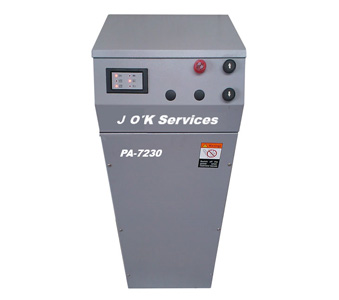

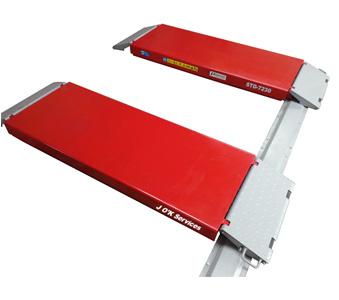

The PA-7230A 3 ton on floor is ideal for most types of applications in the work shop. Wheel Free, all vehicle doors can be opened fully. With a 3000 kg lifting capacity, 110 mm minimum Height, 1900 full Height. Safety features include as standard, Twin Ram locking system, , Top limit and Foot Safety Sensors, safety parachute valves, 24 Volt control System.
Lifting capacity3000 kg
| Specifications | PA-6140TH |
|---|---|
| Lifting | |
| Type | Electro Hydraulic |
| Dimensions | |
| Total width | 1900 mm |
| Maximum height | 1900 mm |
| Minimum height | 110 mm |
| Runway width | 1900 mm |
| Motor Rating | |
| Voltage/ Kw | 220V / 2.2 Kw |
| High Lift Pads | |
| Yes | 25 mm |
| Weight | |
| Kg | 600 Kg |
| Dimensions | |
| Total width | 1900 mm |
| Maximum height | 1900 mm |
| Minimum height | 110 mm |
| Runway width | 1900 mm |
