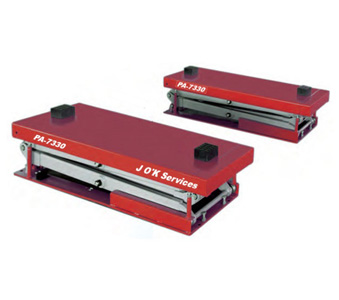

The PA-7330 3 ton in floor is ideal for most types of applications in the work shop. Wheel Free, all vehicle doors can be opened fully. Clear floor when not in use. With a 3000 kg lifting capacity, 0 mm minimum Height, 1900 full Height. Safety features include as standard, Secure pneumatic locking system, Anti tilt, Top limit and Foot Safety Sensors, safety parachute valves, 24 Volt control System.
Lifting capacity3000 kg
| Specifications | PA-7330 |
|---|---|
| Lifting | |
| Type | Electro Hydraulic Pneumatic |

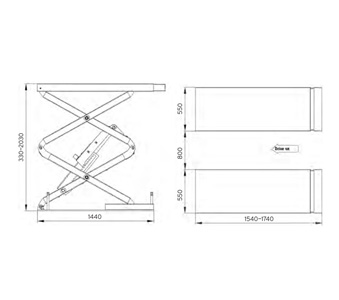

| Dimensions | |
| Total width | 1900 mm |
| Maximum height | 1900 mm |
| Minimum height | 0 mm |
| Runway width | 1900 mm |
| Motor Rating | |
| Voltage/ Kw | 220V / 2.2 Kw |
| High Lift Pads | |
| Yes | 50 mm |
| Weight | |
| Kg | 600 Kg |
| Dimensions | |
| Total width | 1900 mm |
| Maximum height | 1900 mm |
| Minimum height | 0 mm |
| Runway width | 1900 mm |
