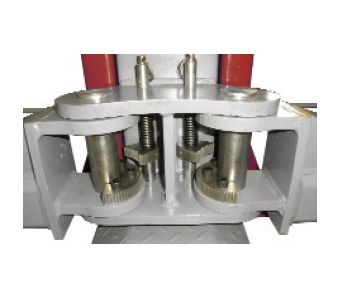

PA-6150D 5 Ton Automatic Lock 2 Post Lift, The PA-6150D Automatic Lock 2 Post Lift is ideal for the medium to larger vehicle types of applications in the work shop. With a 5000 kg lifting capacity, 120 mm minimum lifting, three stage arm extension front and rear, wide runway, screw up lift Pads and high lift extension pads this lift is suitable for most vehicles. Safety features include as standard, auto locks on accent, Auto locks on decent, safety parachute valves, 2 rope hydraulic counter balance. secure arm locking system, 24 Volt dead man control and chain protection covers.

Specifications

Lifting capacity5000 kg

Specifications PA-6150D
Lifting
Type Electro Hydraulic

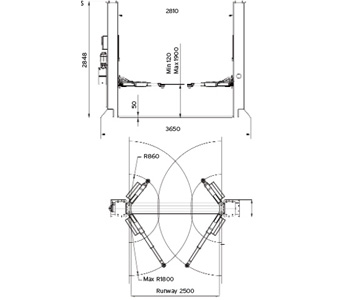

Dimensions
Total width 3620 mm

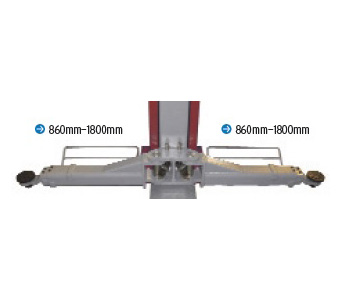

Arm length 860 / 1800mm
Maximum height 1900 mm
Minimum height 120mm
Runway width 2810 mm
Motor Rating
Voltage/ Kw 220V / 2.2 Kw

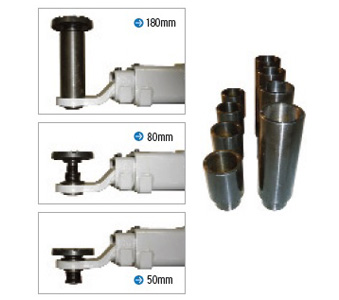

High Lift Pads
Yes 50mm 100mm
Weight
Kg 900 Kg

Dimensions

Dimensions
Total width 3620 mm
Arm length 860 / 1800mm
Maximum height 1900 mm
Minimum height 120mm
Runway width 2810 mm
